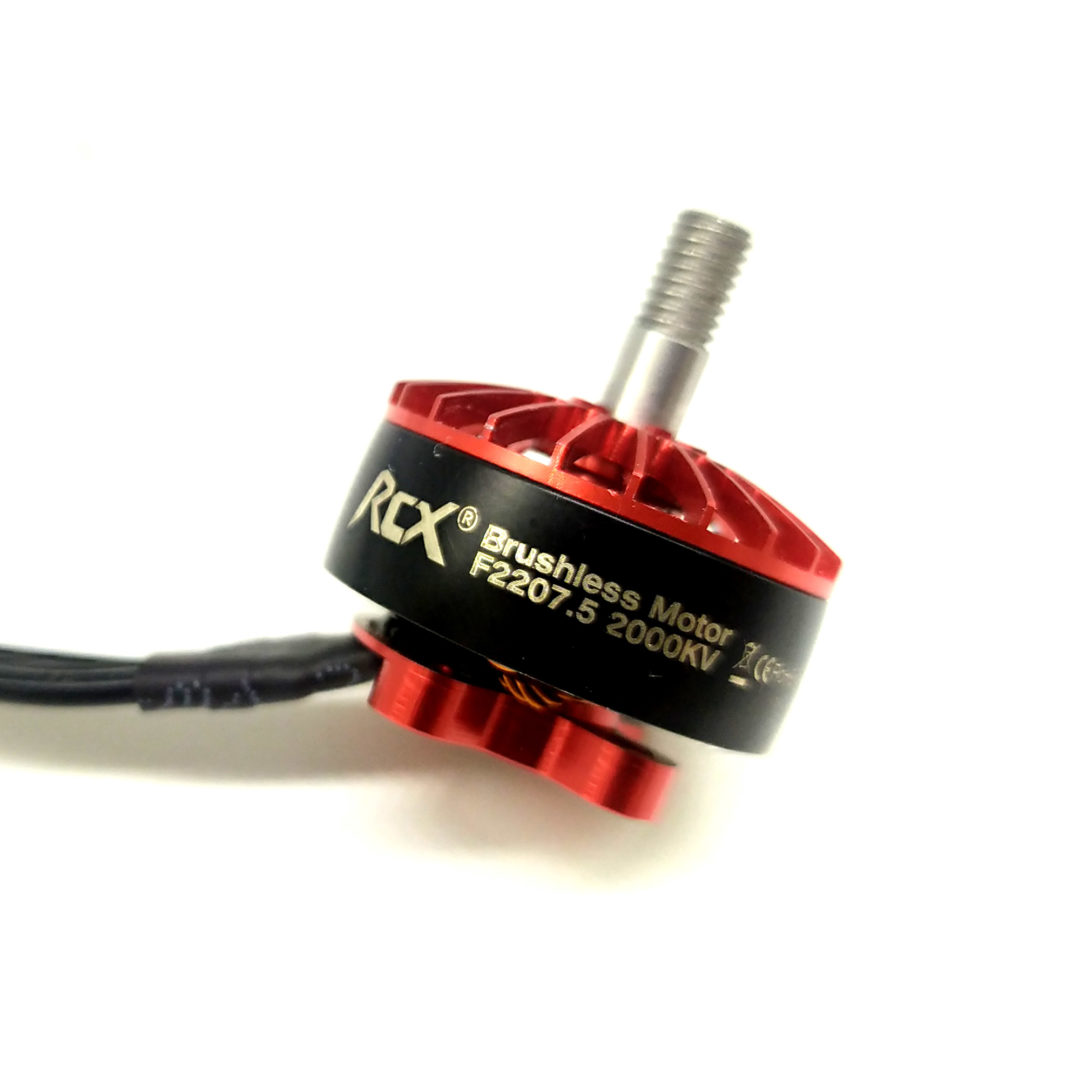

RCX F2207.5 2000KV – (Japan EZO Bearing w/ N52SH Arc Magnet)

17,50 TTC

Puissance sans limite, gestion facile,  fiabilité, solidité et petit prix,  le moteur le plus économique pour vos setup 6S sans compromis sur les performances.

Mon choix pour la fin de saison 2019 de FPV Racing.

Out of stock

Description

This is the Naked Based version of F2207.5 manufactured with Arc N52SH Magnet, Japan EZO Bearing, 0.15mm Nippon Steel Silicon Steel and 7075 High Quality CNC Material.

This F2207.5 motor made with Japan Imported Copper Wire, EZO Bearings, 0.15mm Nippon Steel Silicon Steel.

Unlike most other brands who do not balance their motors (or just lie that the motor has been balanced). All of our F2207.5 motors have been balanced by Dynamic Balancing Machine. It takes time so the production quantity (bottleneck) is limited. You will see the balancing mud in most of RCX F-Motors, it is the proof of *balanced*

Standard 5mm Prop Shaft with Special Anti-Slip Pattern Circle Plate
This motor designed with standard Φ5mm Prop Mount together with Slip-Resistant Lock Nut so this can lock up the propeller pretty well. The circle plate has special anti-slip pattern.

Specification

  • Model: F2207.5
  • KV: 2000KV
  • Weight: Approx. 35g Only (net weight included long AWG cables)
    • you can lower the weight if you shorten the long AWG cables.
  • AWG Cable: 15cm
  • Prop Shaft Diameter: 5mm (CW)
  • Stator Diameter: 22mm
  • Stator Length: 7.5mm
  • Shaft Diameter: 4mm
  • Configuration: 12N14P
  • Rotor: N52SH Arc Magnets
  • Shaft: Titanium Alloy Hollow Shaft
    • Top 5mm Hollow
    • Bottom 4mm Solid (even more hard)
  • Stator: 0.15mm Nippon Steel Silicon Steel
  • Bearings:  Japan EZO Bearing 4x9x4mm (684ZZ)
  • CNC Material: High Quality AL 7075
  • Motor Dimensions: Φ–mm
  • ldle Current: 0.00A @ 10V
  • Internal Resistance: 0.00Ω
  • Suitable ESC: 30-50A (depends on the propeller and battery you use)
  • Suitable Battery: 5-6S Li-Po (refer to thrust test table and videos)

Package Included

  • 1 x RCX F2207.5 2000KV FPV Racing Edition Motor
  • 1 x Low Profile Hex Lock Nuts M5 (Slip-Resistant) – CW
  • 1 x Set of M3*5 Screw
