SPECIFICATIONS:

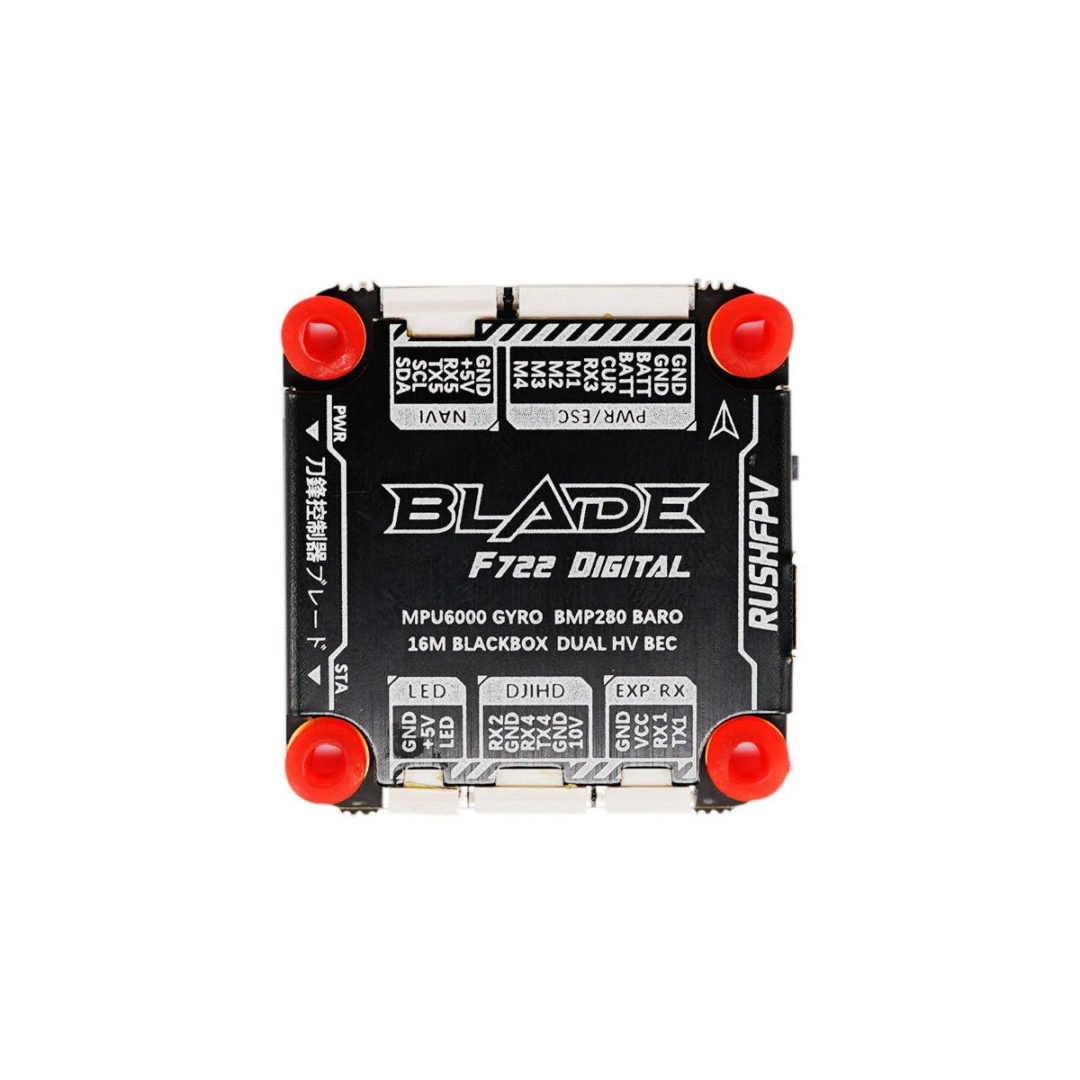

RUSHFPV RUSH BLADE F722 Digital Flight Controller For DJI Digital FPV System

• MCU: STM32 F722 RET6 216MHz
• GYRO: MPU6000
• Blackbox: 16Mb SPI Flash
• Input Voltage: 7-40V 3-8S LiPo
• BEC Output: 5V/5A 10V/3A
• Ports: 6 x PWM, 5 x UART, 1 x I2C
• LED: Supports WS2812 LED Strip
• Mounting Holes: 30.5mm x 30.5mm
• Dimensions: 36.5mm x 38mm x 5.2mm
• Weight: 9.5g (Without Cables)
• Firmware Target: Rush_Blade_F7_HD

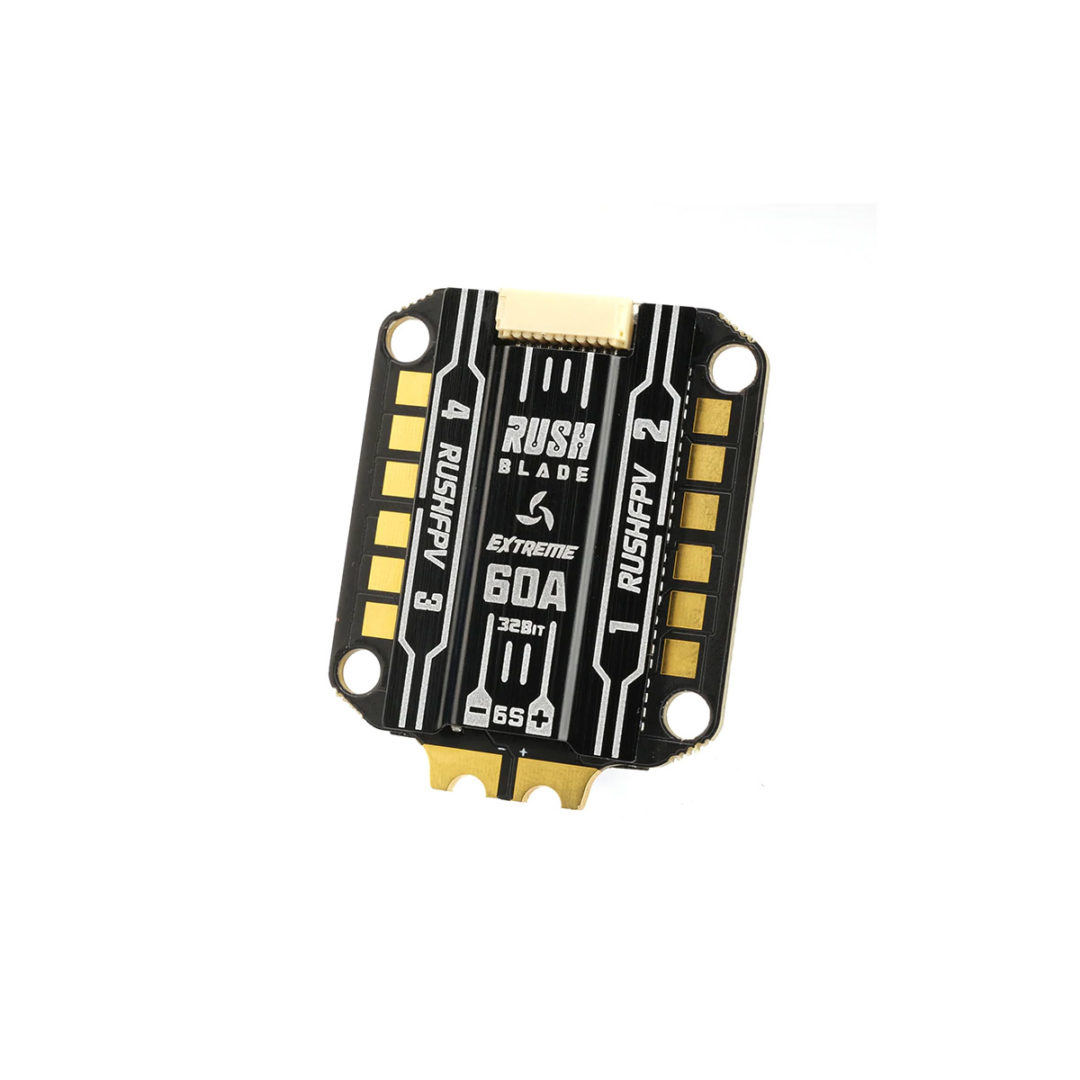

RUSHFPV RUSH BLADE 60A 128kHz 3-6S BLHeli_32 4-in-1 ESC – Extreme Edition

• Rated Current: 60A
• Peak Current: 80A
• Input Voltage: 3-6S Lipo
• MCU: F4 @ 200MHz
• PWM FREQ: 24-128KHz
• LED Color: Orange
• Weight：16.5g
• Dimension: 45*36.5*7.5mm
• BL32 FW: RUSH_BLADE_EXTREME

PACKAGE INCLUDES:

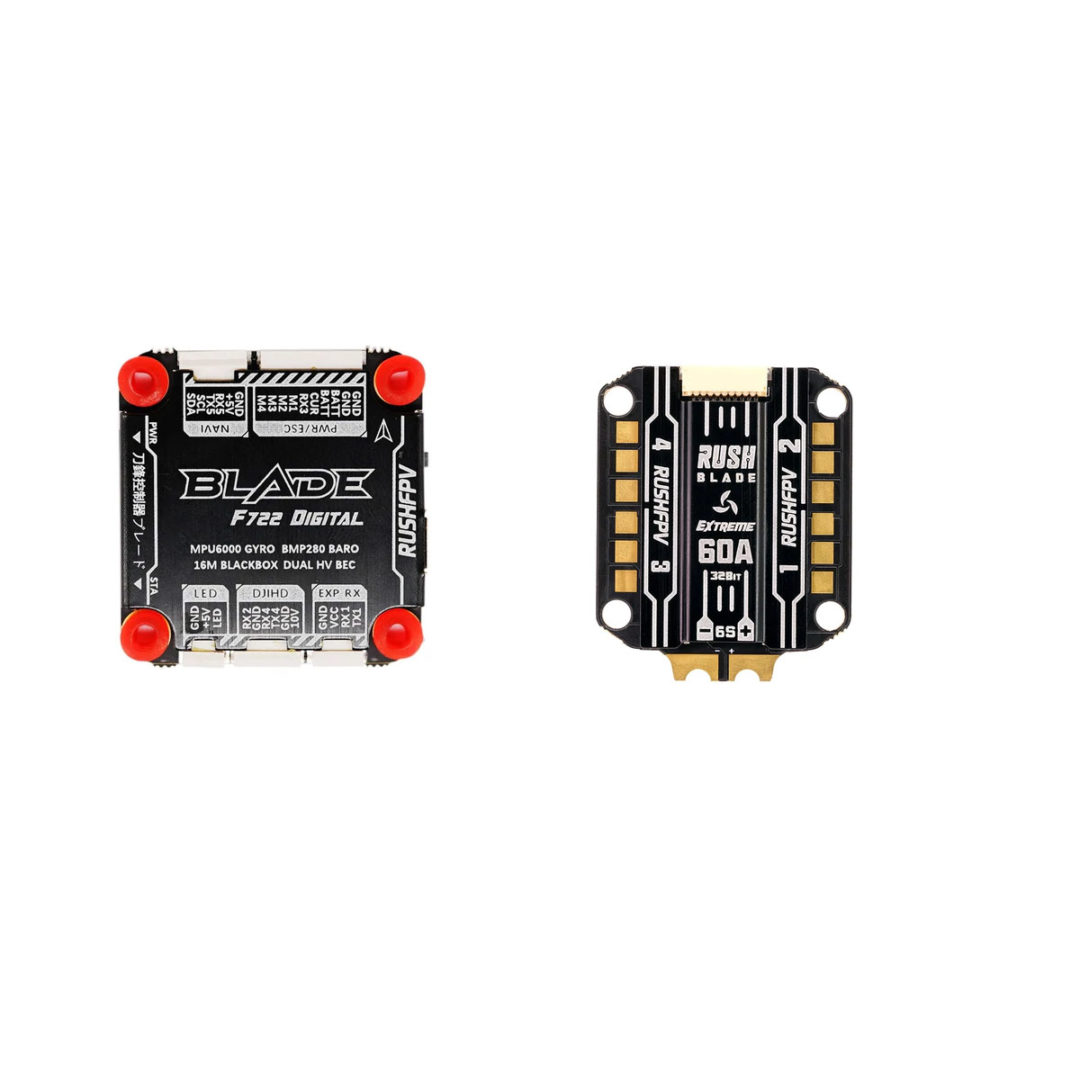

• 1 x RUSHFPV RUSH BLADE F722 Digital Flight Controller For DJI Digital FPV System
• 1 x RUSHFPV RUSH BLADE 60A 3-6S BLHeli_32 4-in-1 ESC – Extreme Edition
