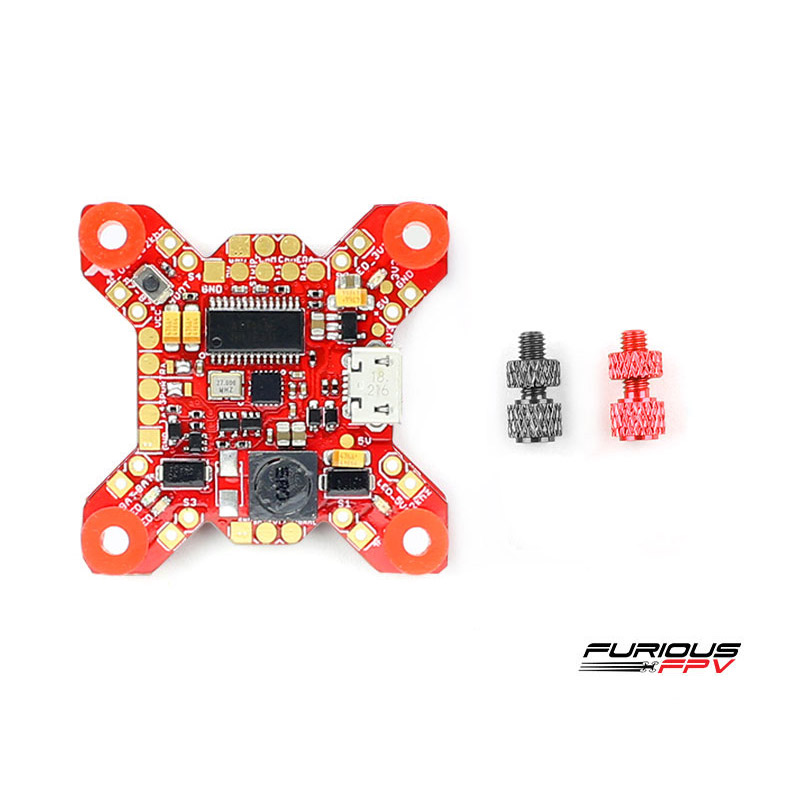

FuriousFPV FORTINI F4 32Khz OSD Rev 3 Flight Controller

39,90 TTC

Furious FPV Fortini F4 OSD – Seeing Is Believing.

Building upon the powerful Fortini F4, Furious FPV introduces the all new Fortini F4 OSD, introducing new capability& functionality to simplify setup & redefine your next FPV experience. Hold on – it’s about to get really good.

Utilizing the cutting edge & feature packed Fortini F4 platform, we have introduced BetaFlight OSD, with the full ability to alter every setting you need direct via your transmitter. No need for your PC – just a few simple stick movements, and you’re there – simple and straightforward, just the way it should be.

From PID’s, camera settings, VTx power and beyond, the Fortini F4 OSD builds upon the previous F4 with powerful and easy to use operating capability without the need of a PC. Need more? We added a built in LC filter for even greater video image, allowing you to push the ragged edge with your next FPV ride.

Designed to be nothing but the very best, the Fortini OSD utilizes high performance, low noise 32kHz Invensense 20602 gyros, (5) UARTS, built in Input / Output Inrush Voltage Protection, and the capability to allow S.PORT direct connection with the receiver without any aspect of receiver modification. This massive feature dense packaging offers everything you could ever want from the most sophisticated flight controller available today.

Feature rich and ultra powerful, the Fortini is the full up package, breaking new ground in true FC brilliance. Toss compromise out the window and open your FPV world to the most functional and feature packed FC you have ever seen before.


– Ultra Simplified OSD Interface w/ No PC Necessary

– High Performance, Low Noise, Ultra Sensitive 32kHz Invensense 20602 Gyro

– Five UARTS for Simultaneous Connections of SBUS, S.Port,  MSP Receiver, and USB

– UARTS Connection Options for TBS Smart Audio or Immersion RC Tramp

– Integrated Soft Mount Silicone Damping for Maximum FC Functionality

– Inrush Voltage Protection Input & Output via Transient Voltage Suppressor

– High Quality 5V 2A BEC w/ 2S – 6S Voltage Input Range

– Built In Driver Inverter for SBUS and Smart Port Connection

– Separate Power Supply for Gyro w/ LDO for Low Noise & High Accuracy

– 3.3V – 5V Selectable BEC Output for Rx

– Fully Capable to Power Rx via USB Port

– Clean and Easy to Connect 4-in-1 ESC

– Clean and easy to connect VTX have telemetry (Stealth race, Tramp, Unify)

– Additional Serial RX 5 & Optional UART6 (Tx6 with/without inversion)*

BetaFlight OSD – Setup Simplified.

Ditch the PC and enter the world of simplicity & ease. Setup brilliance awaits you with built in BetaFlight OSD, offering full parameter adjustment when it comes to all your flight settings. From camera, PID’s VTx power and beyond, you are seconds away from perfection – no strings attached.

Invensense 32kHZ Gyro – Nothing but the Best.

Fly it like it’s on rails. With cutting edge gyro functionality, the 32kHz Invensense 20602 gyro is the best of the best, offering epic flight characteristics every time you take to the skies. Utilizing low noise & high sensitivity, this gyro makes every flight simply unforgettable.

Simultaneous Connection Functionality – Keep It Social.

With the ability to integrate so many systems into (1) flight controller, the Fortini OSD pushes the realms of connectivity with (5) UARTS, allowing SBUS, S.PORT, MSP Receiver, USB and either TBS Smart Audio or Immersion RC Tramp functionality. Simply put, this bad boy is feature packed in every possible way.

Bad to the Bone BEC – Function Meets Demand.

Massively flexible with high power output, the 2A 5V BEC offers a wide 2S to 6S input range, with the ability to select 3.3V to 5V receiver power & the ability to power the Rx via USB. With this level of flexibility, it’s simply plug & play – Furious FPV has taken the hard work out of the loop.

Input & Output Inrush Voltage Protection – Safety is Key.

Protecting against extreme voltage spikes, the Inrush Input & Output Voltage protection keeps everything safe, making sure transient voltage spikes do no damage.

Camera OSD control/LED Strip functions

BetaFlight OSD and beyond, the FORTINI F4 OSD can control the camera OSD settings as well as LED strip functions. This unleash full customization for your build both performance and appearance.

* The CNC Aluminium Spacers and Silicone Dampers come in random colors: red, blue, purple and black and they are also available for purchase separately.

Out of stock


Petit rappel : dès réception de votre article, veuillez le connecter en USB et calibrer l’accéléromètre avant de commencer à souder.

En utilisant la plate-forme Fortini F4 à la pointe de la technologie, nous avons introduit l’OSD BetaFlight, avec la possibilité de modifier tous les paramètres dont vous avez besoin directement via votre émetteur. Pas besoin de votre PC – juste quelques mouvements simples des sticks, et vous êtes là – simple et direct, juste comme il se doit.

Grâce à un nouveau gyroscope Invensense 20602 à haute performance et à 32kHz, doté d’une sensibilité ultra élevée, cette FC est conçue pour des performances exceptionnelles, offrant des caractéristiques de vol ultimes qui seront ressenties dans tous les mouvements que vous effectuez.

Avec un énorme ensemble de (5) UARTS, la Fortini permet la connexion simultanée de SBUS, S.PORT, OSD, USB et TBS Smart Audio System ou Immersion RC Tramp. En plus de cela, la Fortini est le premier contrôleur de vol qui offre une protection intégrée en tension d’entrée et sortie pour protéger le BEC et d’autres composants électroniques dans le cas de pointes de tension extrêmes.

Soft mounté pour une protection antivibratoire optimale, Fortini OSD est également la première FC à permettre la liaison directe du S.PORT avec le récepteur sans aucune modification du récepteur.


  • Interface OSD ultra simplifiée sans PC nécessaire
  • Haute performance, faible bruit, Gyro ultra sensible 32kHz Invensense 20602
  • Cinq UARTS pour les connexions simultanées de SBUS, S.Port, OSD et USB
  • Options de connexion UARTS pour TBS Smart Audio ou Immersion RC Tramp
  • Amortissement en caoutchouc souple intégré pour une fonction FC maximale
  • Entrée et sortie de tension protégées
  • Haute qualité 5V 2A BEC –  2S – 6S Plage d’entrée de tension
  • Built In Driver Inverter pour SBUS et Smart Port Connection
  • Alimentation séparée pour Gyro w / LDO pour faible bruit et haute précision
  • BEC 5V/3.3V sélectionnable pour Rx
  • Entièrement apte à alimenter le Rx via le port USB
  • Très propre et facile à connecter à un ESC 4-en-1
  • Gestion des led strip via OSD


  • Gyro: Invensense 32kHz 20602 Gyro
  • UARTS Ports: (5)
  • BEC: 5V 2A 2S 7.4V – 6S 22.2V Input Voltage Range (3.3V – 5V Rx Selectable)
  • Poids: 5.5g
  • Taille: 36x36mm
